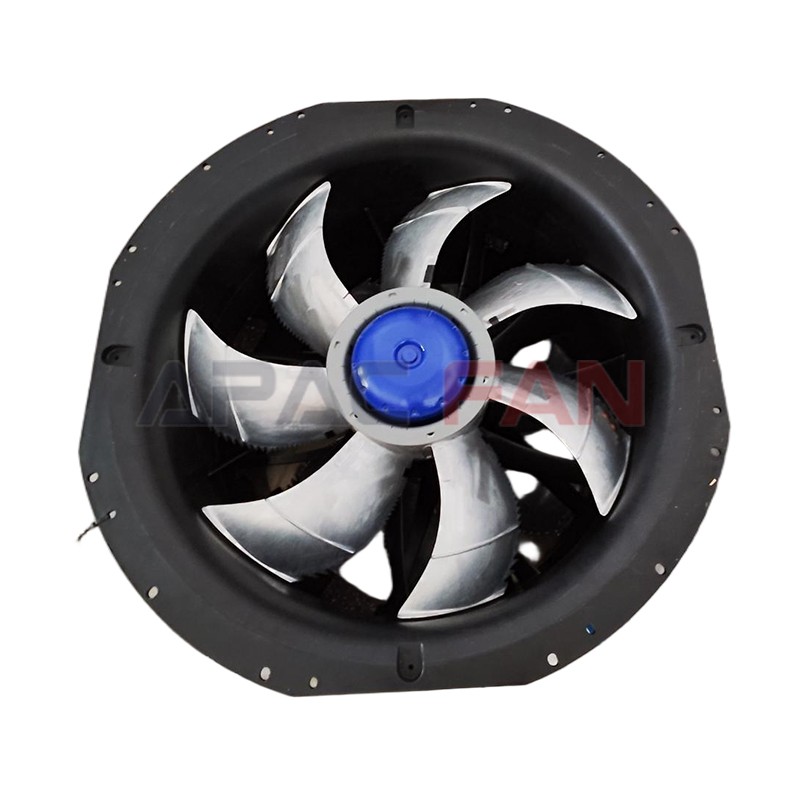

ZN091-ZIL.GL.V5P1 192292 ZIEHL-ABEGG Axial Fan
Part No：ZN091-ZIL.GL.V5P1 192292
Fan Type：Axial Fan
Rated Voltage(V)：3`380-480
Size(mm)：910
Max.Air Flow(m³/h)：33000
Max.Pressure(Pa)：325
Input Power(W)：3200
Speed(rpm)：1105

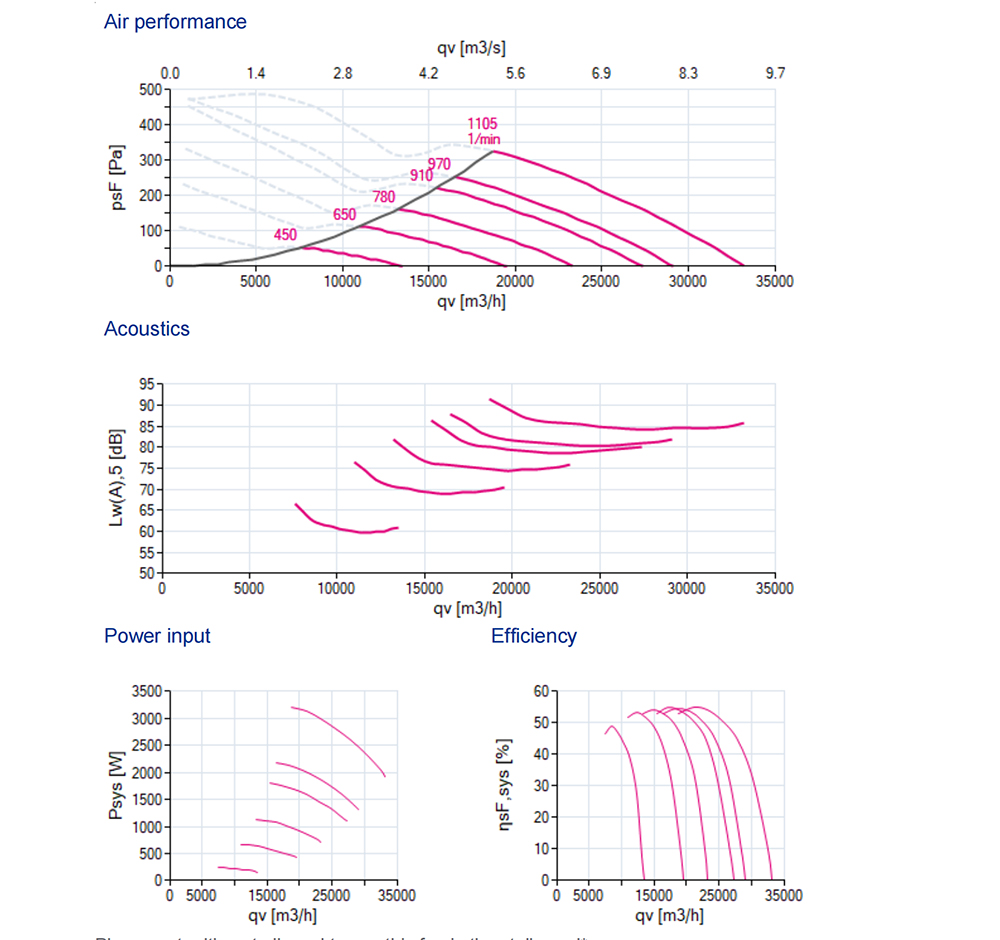

Nominal data
Description

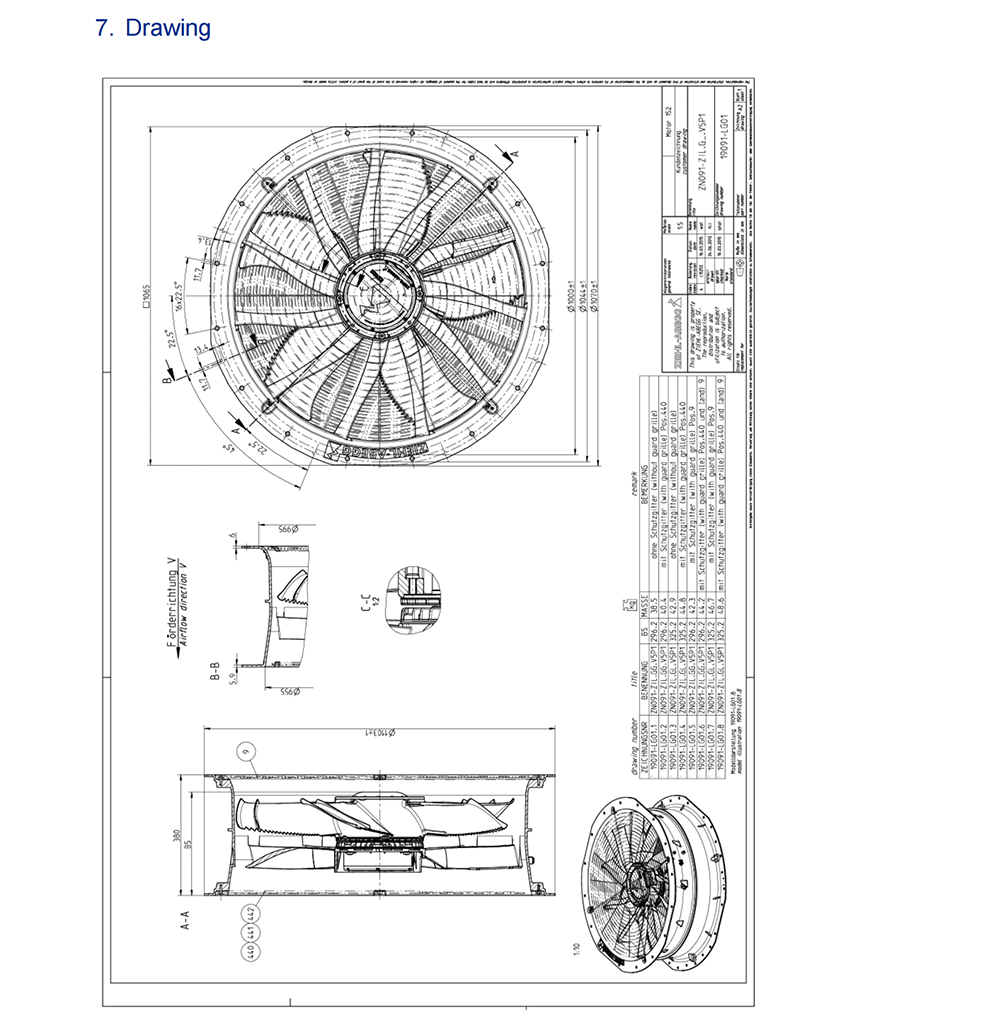

ZN091-ZIL.GL.V5P1 192292 Ziehl-abegg Specification drawing：
Applications
ZIEHL-ABEGG ZN091-ZIL.GL.V5P1 192292 can be considered for large heat exchangers, condensers, dry coolers and ventilation equipment where its 33,000 m³/h maximum airflow, 325 Pa maximum pressure and electrical requirements match the system.
Selection and Replacement
When replacing an existing unit, confirm both ZN091-ZIL.GL.V5P1 and article number 192292. Compare voltage range, fan size, performance, power, speed, mounting and connection requirements.
FAQ
Q1. What is the ZN091-ZIL.GL.V5P1 192292?
A1. The ZN091-ZIL.GL.V5P1 192292 is a ZIEHL-ABEGG ec axial fan. Use the complete model number when requesting a quotation or checking a replacement.
Q2. What should I check before ordering the ZN091-ZIL.GL.V5P1 192292?
A2. Check the complete part number, rated voltage, dimensions, airflow and pressure requirements, input power, speed, mounting arrangement and electrical connection against your equipment requirements.
Q3. Can a similar model replace the ZN091-ZIL.GL.V5P1 192292?
A3. A similar base model should not automatically be treated as interchangeable. Confirm the full suffix and the technical data of the existing fan before substitution.
Request Product Information
Looking for the ZIEHL-ABEGG ZN091-ZIL.GL.V5P1 192292? Send the complete model number, quantity and application requirements to APAC FAN for product and availability information.
